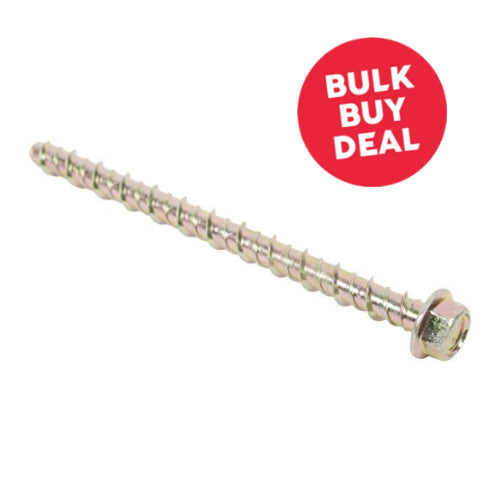

Thunderbolt Hex Flange Head M6 x 75mm
Thunderbolt Hex Flange Head M6 x 75mm
Regular price
£26.55 GBP
Regular price
Sale price
£26.55 GBP
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
- The original and best selling all-purpose anchor
- Self tapping and suitable for concrete, stone, brick, marble, wood and block (solid or hollow)
- Safe anchorage achieved without the need of high tightening forces
- Can be removed and re-fixed into the same hole, providing the thread is correctly aligned
- No expansion forces means close to the edge fixing and reduced centre spacing distances
Technical Info:
| Head Type | Hex Flange Head |
| Driver Type | 10mm A/F |
| Drill Bit Dia. | 6mm |
| Max Fixture Thickness | 45mm |
| Min Embed Depth | 30mm |
| Min Over Drill Depth | 10mm |
| Clearance Drill Bit Dia. | 8mm |
| Max Tightening Torque | 25Nm |
| Anchor Length | 75mm |
| Min Hole Depth | 40mm |
