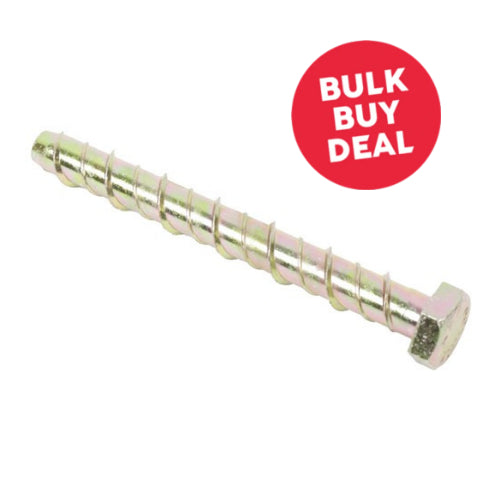

Thunderbolt Hex Head M10 x 75mm
Thunderbolt Hex Head M10 x 75mm
Regular price
£28.18 GBP
Regular price
Sale price
£28.18 GBP
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
- The original and best selling all-purpose anchor
- Self tapping and suitable for concrete, stone, brick, marble, wood and block (solid or hollow)
- Safe anchorage achieved without the need of high tightening forces
- Can be removed and re-fixed into the same hole, providing the thread is correctly aligned
- No expansion forces means close to the edge fixing and reduced centre spacing distances
Technical Info:
| Head Type | Hex Head |
| Driver Type | 17mm A/F |
| Drill Bit Dia. | 10mm |
| Max Fixture Thickness | 25mm |
| Min Embed Depth | 50mm |
| Min Over Drill Depth | 20mm |
| Clearance Drill Bit Dia. | 12mm |
| Max Tightening Torque | 60Nm |
| Anchor Length | 75mm |
| Washer Size | 12mm |
| Min Hole Depth | 70mm |
